Lifting Cages – Goods
+ Add to Quote Request

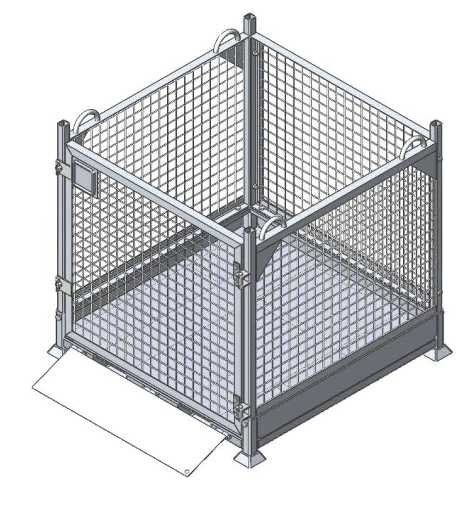

MCGC115 Crane Goods Cage

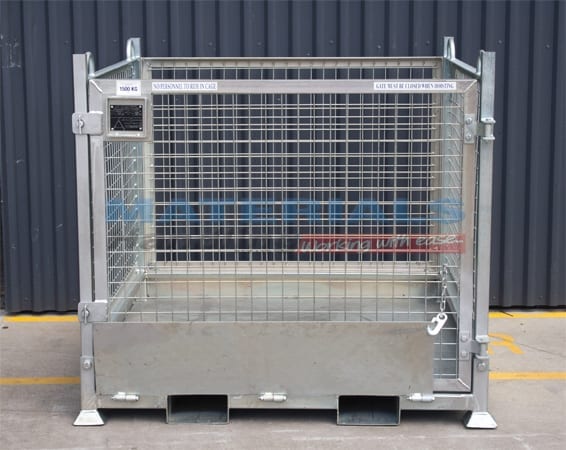

MCGC115 Crane Goods Cage with gate closed

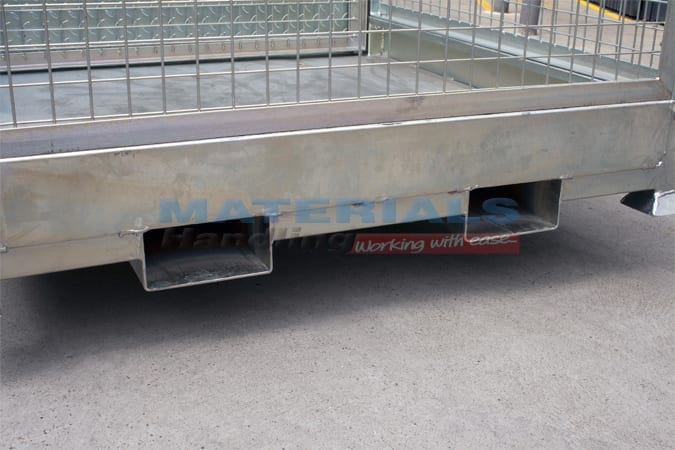

MCGC115 Crane Goods Cage fork pockets

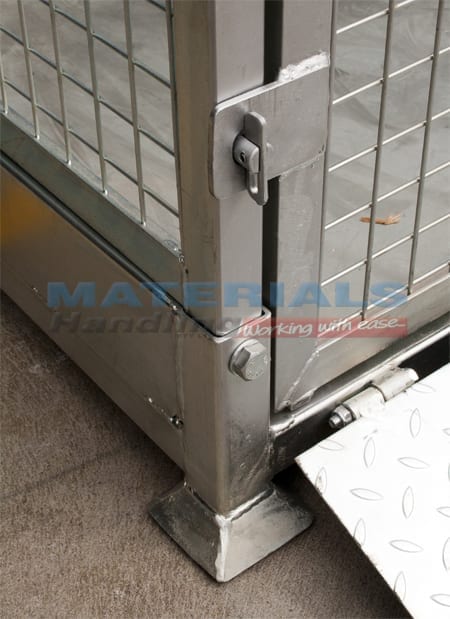

MCGC115 Crane Goods Cage - locks and ramps

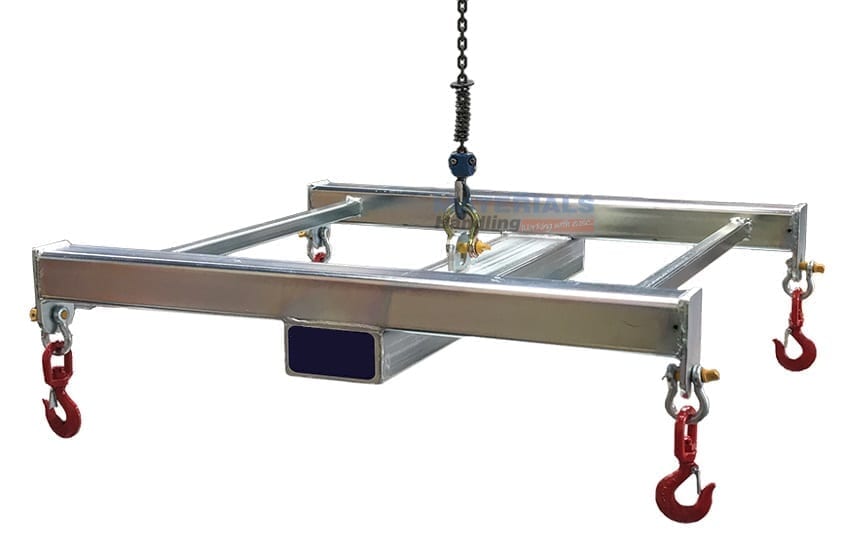

MBSN6-CL Optional Lifting Frame

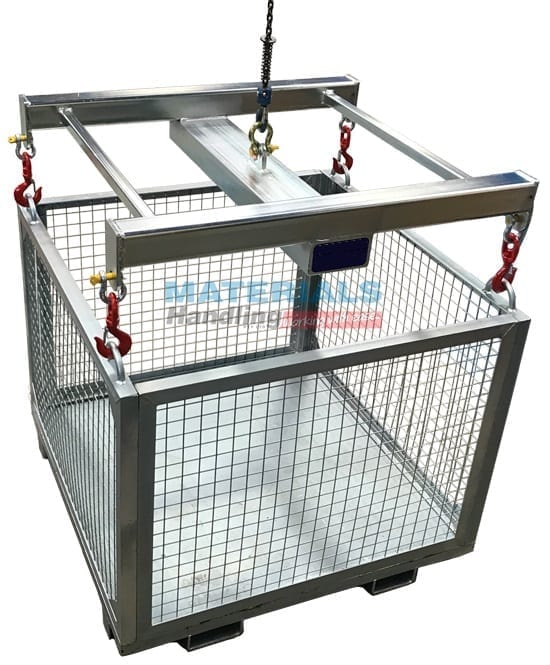

MCSPN-CL Optional lifting frame with goods cage

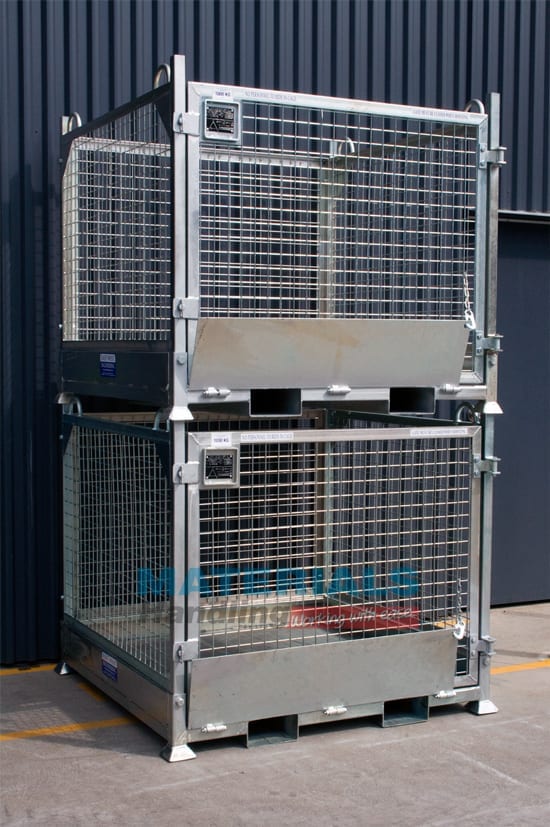

MCGC130 Crane Goods Cage double stacked

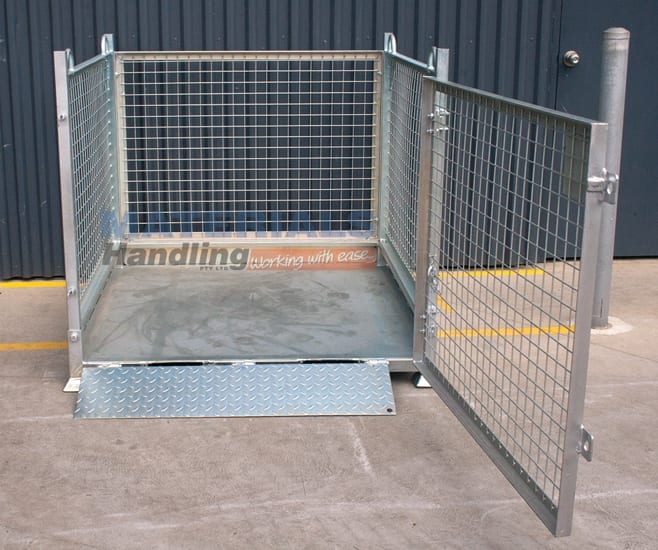

MCGC130 Crane Goods Cage with gate open

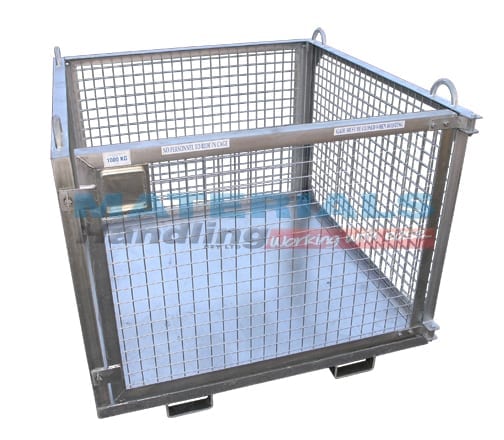

MCSPN-01 Crane Goods Cages with gate closed

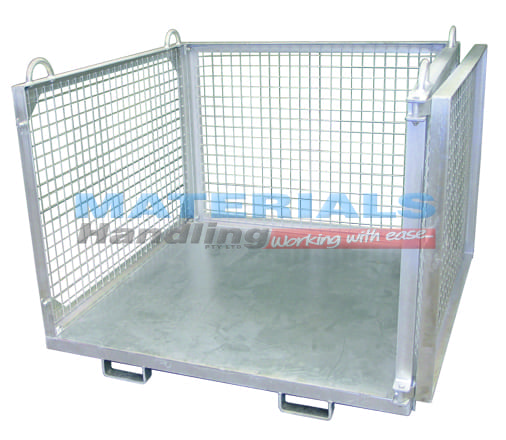

MCSPN-01 Crane Goods Cages with gate open

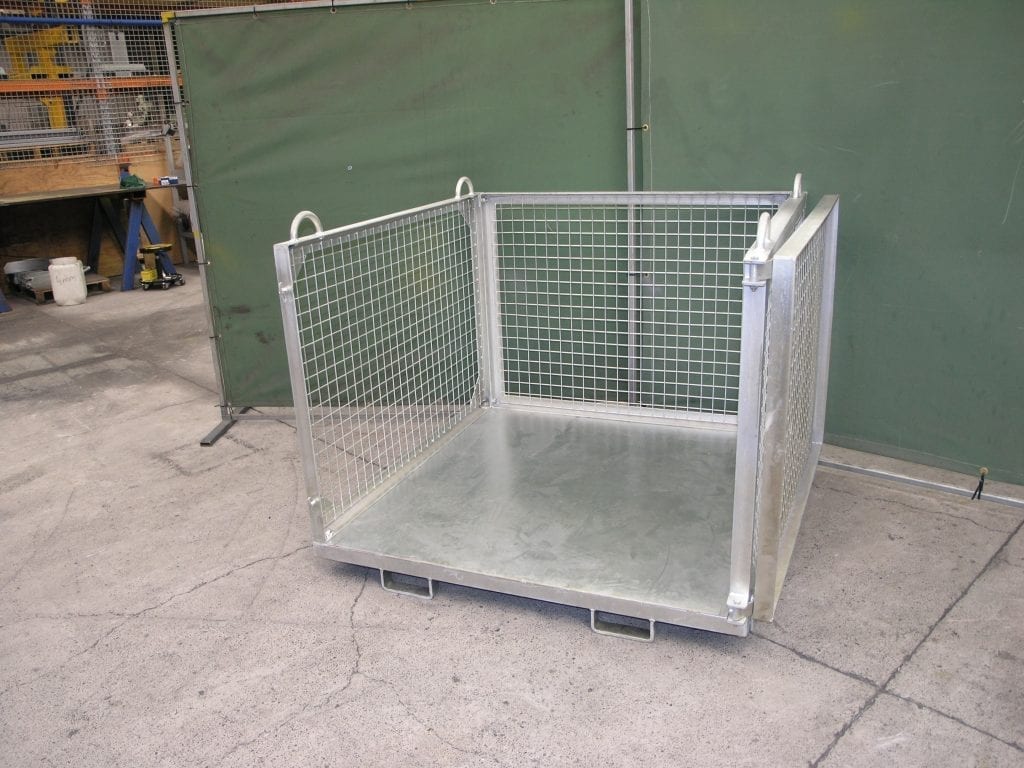

MCSPN-01 Crane Goods Cages

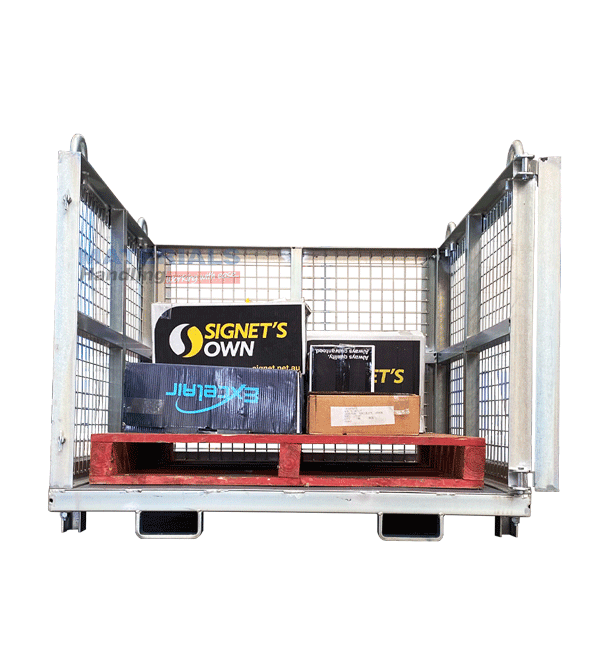

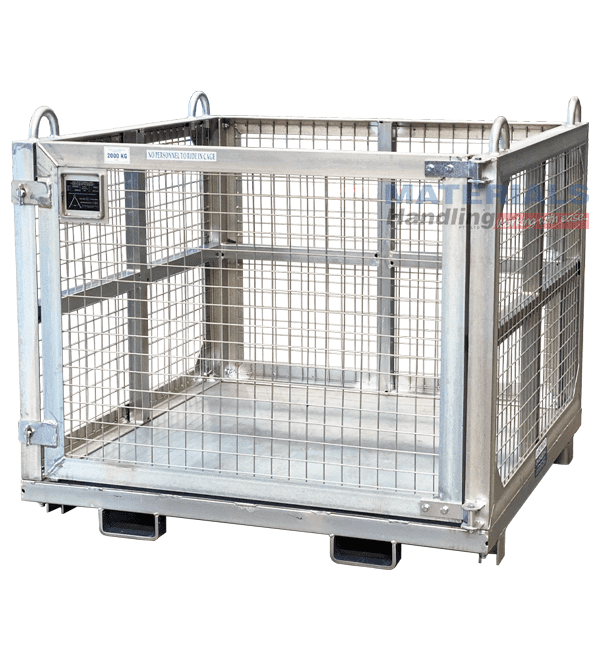

MSCPN-02A Crane Goods Cage
MSCPN-02A with removeable gate and load
Our wide range of Crane Goods Cages are designed to safely store or transport loose items or palletised goods via a crane or forklift.
Fitted with four-point crane lugs, the cages are certified to relevant safety standards and provide a great overhead lifting solution.
Available in several models (as outlined further below), all Crane Goods Cages feature a front opening gate for easy loading and unloading requirements and can be stacked for convenience and storage.
The MCSPN range can be integrated with an optional lifting frame (code: MCSPN-CL).
Additional Information
MCGC range of Crane Goods Cages
As a forklift and crane goods cage, the MCGC range of cages are ideal for loose or palletised goods. They feature a fully opening gate, a drop-down removable access ramp for trolleys and can be stacked 3 cages high when empty and 2 cages high when loaded. They have a variety of benefits for overhead lifting duties.
MCGC115
- Working Load Limit: 1000 kg
- Unit Weight: 180 kg
- Overall Dimensions: 1200 x 1200 x 1180 mm
- Inside Clearance: 1050 x 1050 mm
- Fork Pocket Size: 185 x 85 mm
- Fork Pocket Centres: 500 mm
- Horizontal C of G: 550 mm
- 4 Point Crane Lift
- Stackable
- Enamel Painted / Zinc Plated Finish
- Chains not included
- Full opening front gate
- Drop down and removable access ramp for trolleys

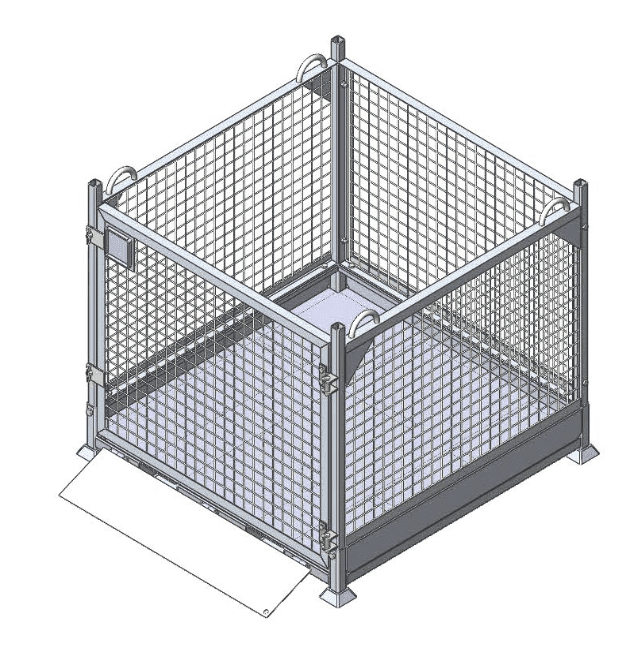

MCGC130
- Working Load Limit: 1000 kg
- Unit Weight: 210 kg
- Overall Dimensions: 1350 x 1350 x 1180 mm
- Inside Clearance: 1205 x 1200 mm
- Fork Pocket Size: 185 x 85 mm
- Fork Pocket Centres: 550 mm
- Horizontal C of G: 625 mm
- 4 Point Crane Lift
- Stackable
- Enamel Painted / Zinc Plated Finish
- Chains not included
- Full opening front gate
- Drop down and removable access ramp for trolleys
MCSPN range of Crane Goods Cages:
Ideal for loose or palletised goods, the MCSPN Crane Goods Cages range features a fully opening front gate that allows 1200 mm pallets to be placed inside the cage. It is fitted with crane lugs for a 4-point lift and fork stirrups. With stacking feet underneath the cage, the unit can be placed on top of each other – 3 high when the cage is empty and 2 high when it’s loaded. An optional lifting frame is available as well (code: MCSPN-CL). Available with either a 1-tonne or 2-tonne Working Load Limit (WLL).
MCSPN-01A
- Working Load Limit: 1000 kg
- Unit Weight: 175 kg
- Overall Dimensions: 1350 x 1350 x 1153 mm
- Gate Opening: 1250 mm
- Fork Stirrup Size: 155 x 60 mm
- 4 Point Crane Lift
- Stackable 3 high when empty or 2 high when loaded
- Zinc Plated Finish
- Chains not included
- Full opening front gate
- Suits a 1200 mm square pallet
MCSPN-02A
- Working Load Limit: 2000 kg
- Unit Weight: 216 kg
- Overall Dimensions: 1350 x 1350 x 1200 mm
- Gate Opening: 1220 mm
- Fork Stirrup Size: 155 x 75 mm
- 4 Point Crane Lift
- Stackable 3 high when empty or 2 high when loaded
- Zinc Plated Finish
- Chains not included
- Full opening front gate
- Suits a 1200 mm square pallet
MCSPN1S
- Working Load Limit: 1000 kg
- Unit Weight: 260 kg
- Overall Dimensions: 1350 x 1350 x 1155 mm
- Gate Opening: 1250 mm
- Fork Stirrup Size: 155 x 60 mm
- 4 Point Crane Lift
- Stackable 3 high when empty or 2 high when loaded
- Zinc Plated Finish
- Chains not included
- Full opening front gate
- Suits a 1200 mm square pallet
MCSPN2S
- Working Load Limit: 2000 kg
- Unit Weight: 310 kg
- Overall Dimensions: 1350 x 1350 x 1200 mm
- Gate Opening: 1220 mm
- Fork Stirrup Size: 155 x 75 mm
- 4 Point Crane Lift
- Stackable 3 high when empty or 2 high when loaded
- Zinc Plated Finish
- Chains not included
- Full opening front gate
- Suits a 1200 mm square pallet
Continue browsing our wide range!
View our other Goods Lifting Cages for some alternative solutions! Need a Forklift specific model? Then view our Forklift Goods Cages as well.
Product Variations
| Image | Description | Product Code | Price (excl. GST) | |
|---|---|---|---|---|
 |
Crane and Forklift Goods Cage 1 tonne – flatpack |
MCGC115 | $2,210.00 | |
 |
Crane and Forklift Goods Cage 1 tonne – flatpack |
MCGC130 | $2,380.00 | |
|
Goods Cage 1350mm SQ |
MCSPN-01A | $1,950.00 | |
|
Goods Cage 1350mm SQ |
MCSPN-02A | $3,010.00 | |
 |

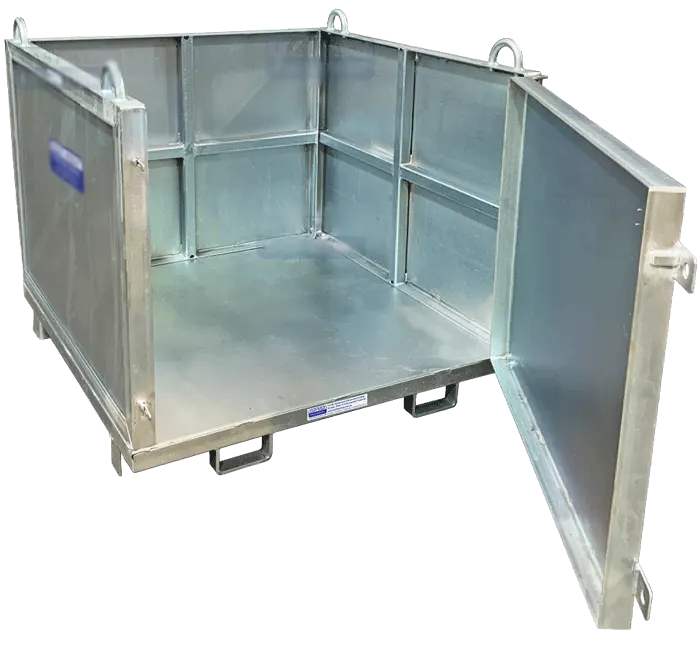

Goods Cage with Sheet Metal Sides 1000kg |
MCSPN1S | $2,710.00 | |
|
Goods Cage with Sheet Metal Sides 2000kg |
MCSPN2S | $3,520.00 | |
 |
Goods Cage Lifting Frame |
MCSPN-CL | $1,650.00 |
