Lifting Beams - Adjustable Crane or Forklift

Lifting Beams – Adjustable Crane or Forklift

Our Spreader Beams can be used by either crane or forklift. They are a unique multi-tasking beam that is perfect for overhead lifting applications. Spreader Beams make light work of extremely heavy loads, lifting them with ease.

The Spreader Beams feature adjustable load suspension points. These hooking points can be moved along and set to three different positions – fully retracted, middle and fully extended. By moving the extendable arms, located at each end of the beam, the span is easily changed. The extendable arms are secured safely with locking pins.

All Spreader Beams are supplied with two safety swivel hooks. The extendable arms are zinc plated and the main body of the beam is painted in a visible ‘safety orange’ enamel. All Spreader Beams are safety certified in accordance with relevant Australian Standards.

Additional Information

Spreader Beams can be used by a forklift or crane!

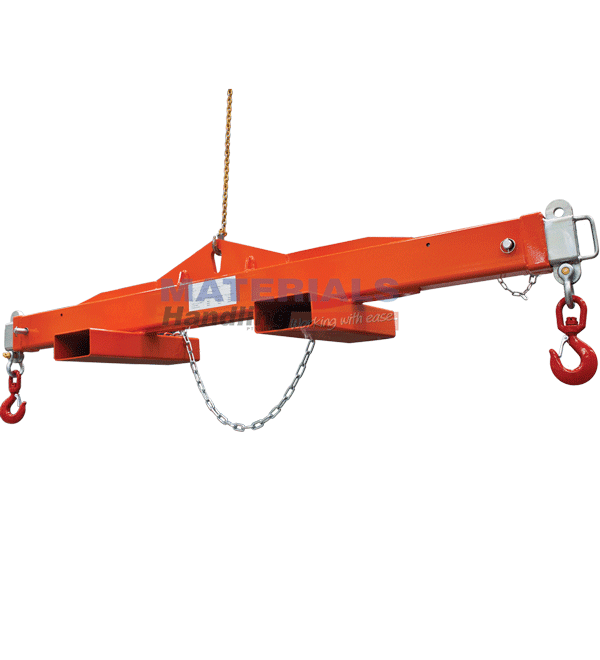

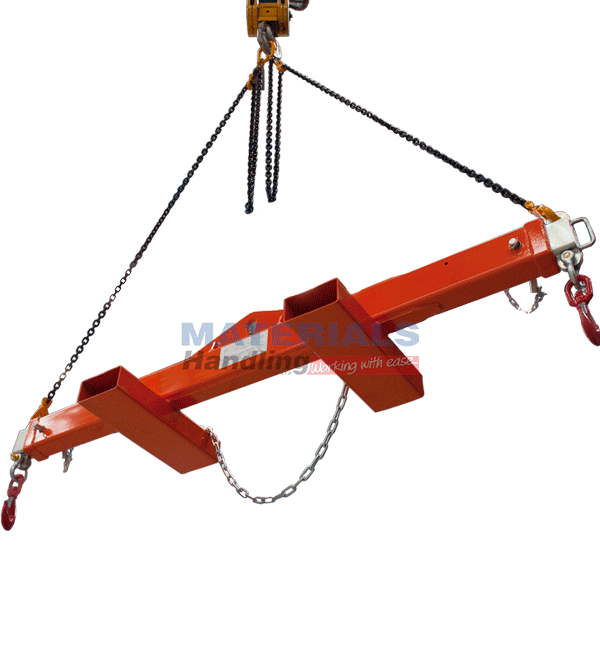

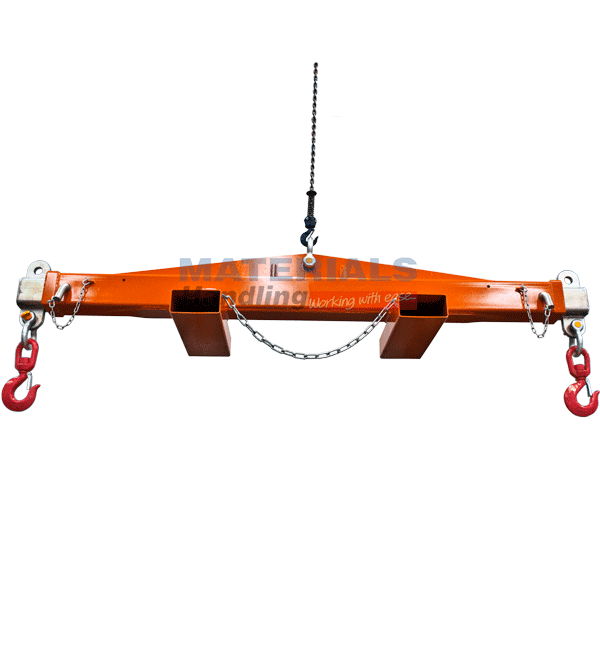

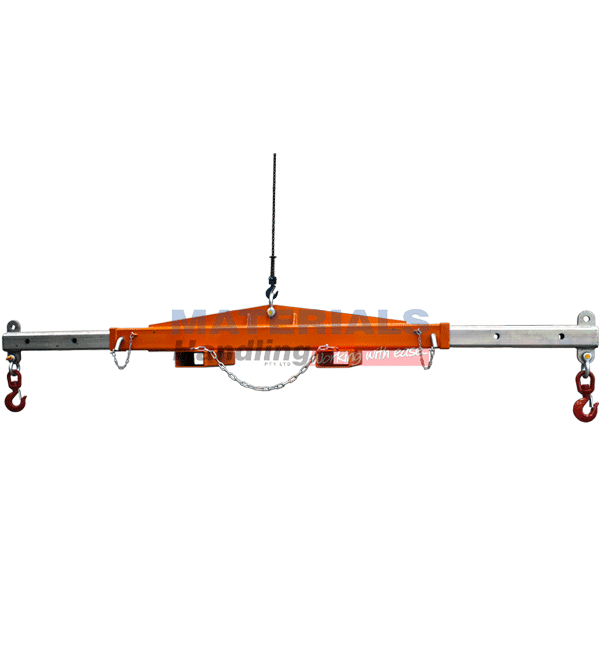

When using a crane, loads can be lifted via the centre single hook point (middle position). This is now being used as a Lifting Beam. They can also be lifted using a two-leg chain sling by hooking at each end.

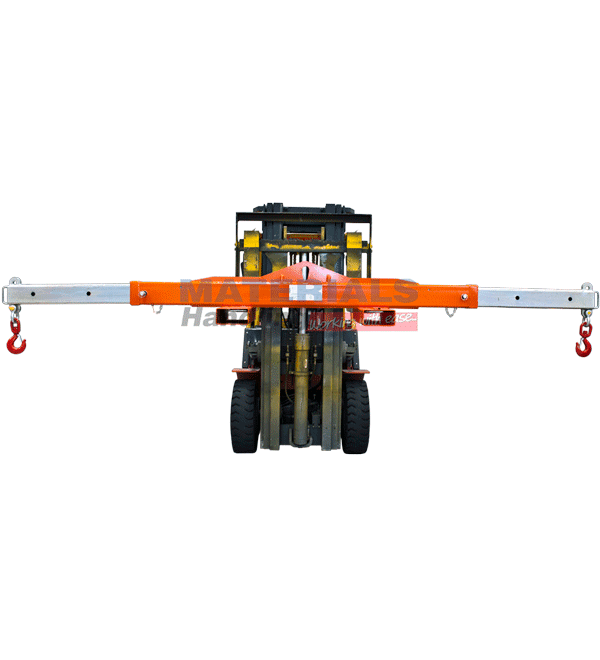

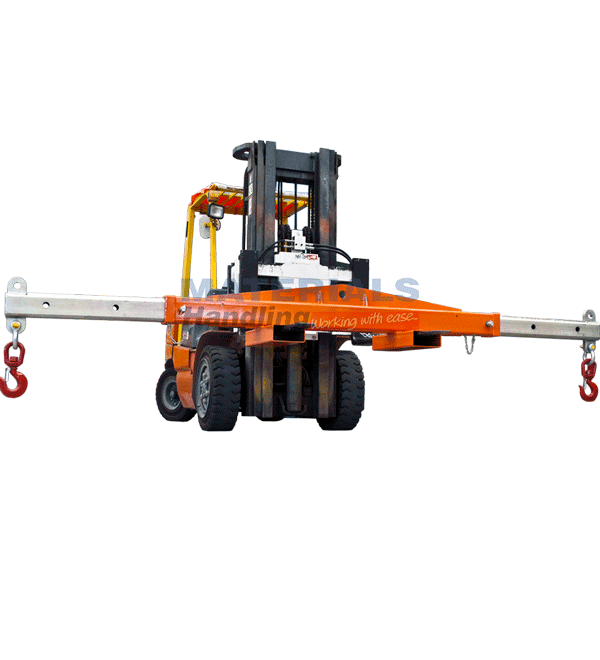

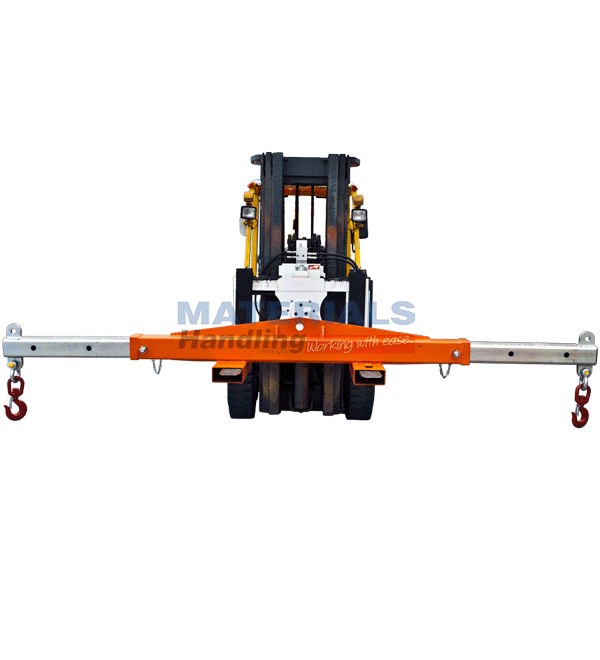

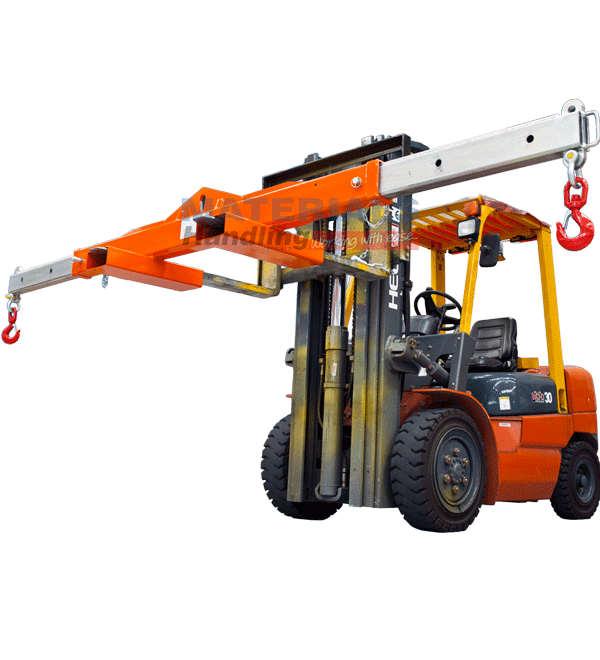

This is then being used as a Spreader Beam. If using a forklift, the slipper pockets allow for fast and safe connection to a fork truck.

MCFB2439

Weight Load Limit (WLL): 9000 kg
Load Centre: 2405 mm
Unit Weight: 172 kg
Fork Lift HCG: 300 mm

Rated Capacity (RC)	Fully Retracted	Middle Position	Fully Extended
When Used As	(LC @ 2405 mm)	(LC @ 3165 mm)	(LC @ 3925 mm)
Forklift Attachment	3500 kg	1500 kg	750 kg
Lifting Beam	4500 kg	2500 kg	1300 kg
Spreader Beam	9000 kg	7200 kg	5600 kg

Rated Capacity (RC) When Used As	Fully Retracted (LC @ 2405 mm)	Middle Position (LC @ 3165 mm)	Fully Extended (LC @ 3925 mm)
Forklift Attachment	3500 kg	1500 kg	750 kg
Lifting Beam	4500 kg	2500 kg	1300 kg
Spreader Beam	9000 kg	7200 kg	5600 kg

MCFM2439

Weight Load Limit (WLL): 10,000 kg
Load Centre: 3900 mm
Unit Weight: 260 kg
Fork Lift HCG: 300 mm

Rated Capacity (RC) When Used As	Fully Retracted (LC @ 2380 mm)	Middle Position (LC @ 3140 mm)	Fully Extended (LC @ 3900 mm)
Forklift Attachment	5600 kg	2900 kg	1400 kg
Lifting Beam	6000 kg	4500 kg	2400 kg
Spreader Beam	10,000 kg	10,000 kg	10,000 kg

For further information, please download the relevant specifications available above.

View more solutions!

We have a wide range of option, so check out our Spreaders range.

Product Variations

Description	Product Code	Price (excl. GST)
Crane and Forklift Spreader Beam	MCFH2233	$4,780.00	Add to Quote Request
Crane and Forklift Spreader Beam (light)	MCFB2439	$2,540.00	Add to Quote Request
Crane and Forklift Spreader Beam (medium)	MCFM2439	$3,150.00	Add to Quote Request
