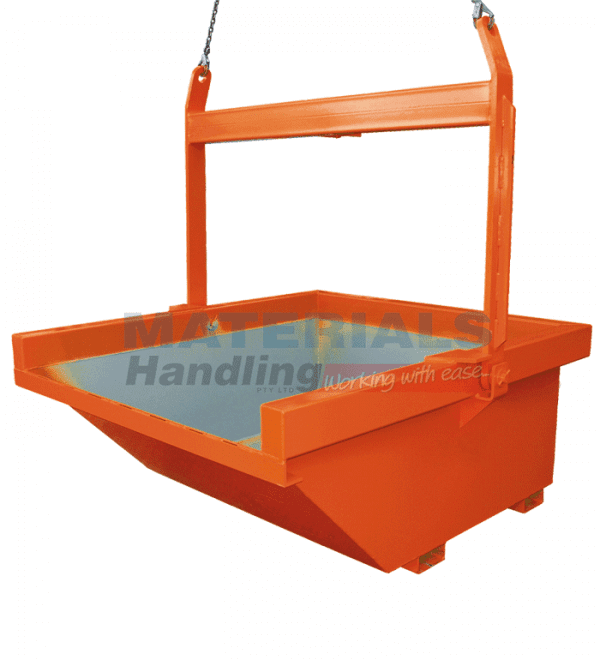

Tipping Bins Crane Lifting Bulk Waste

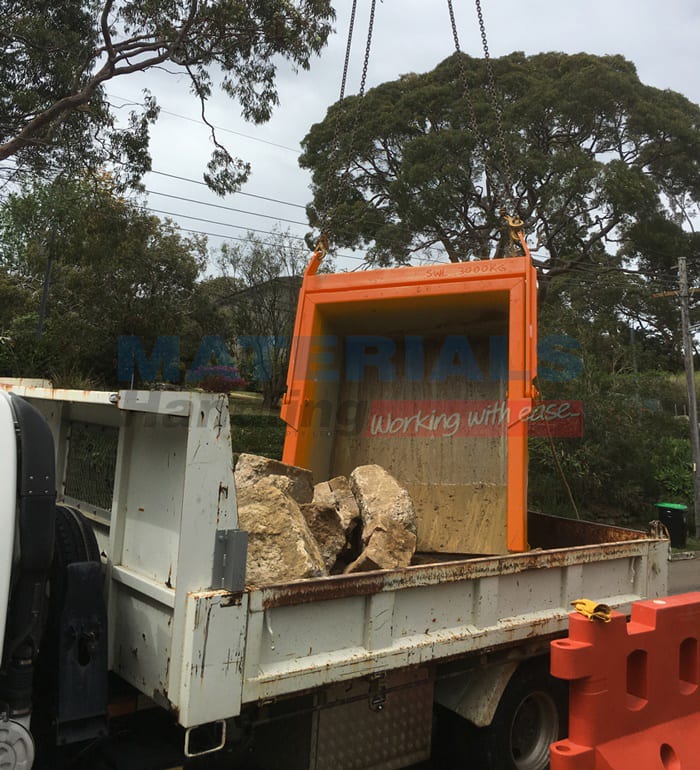

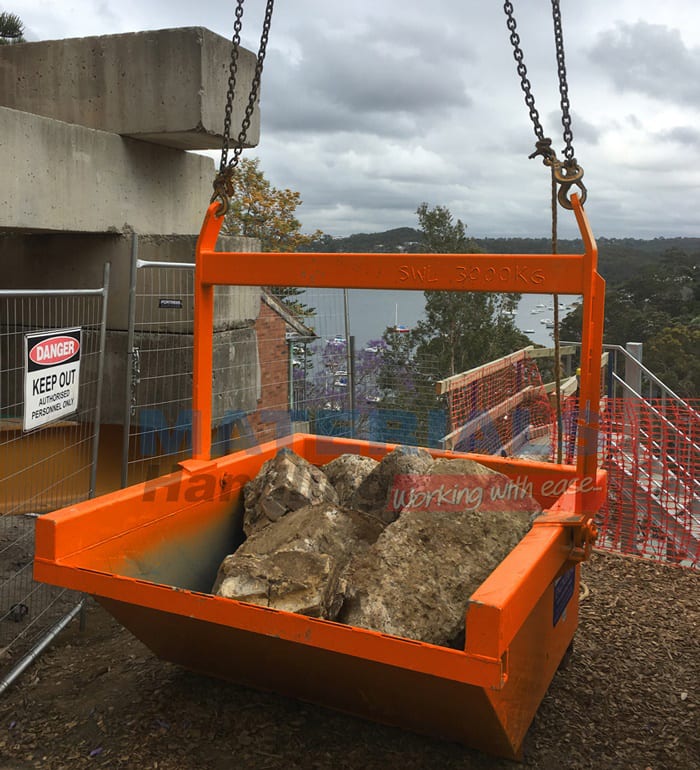

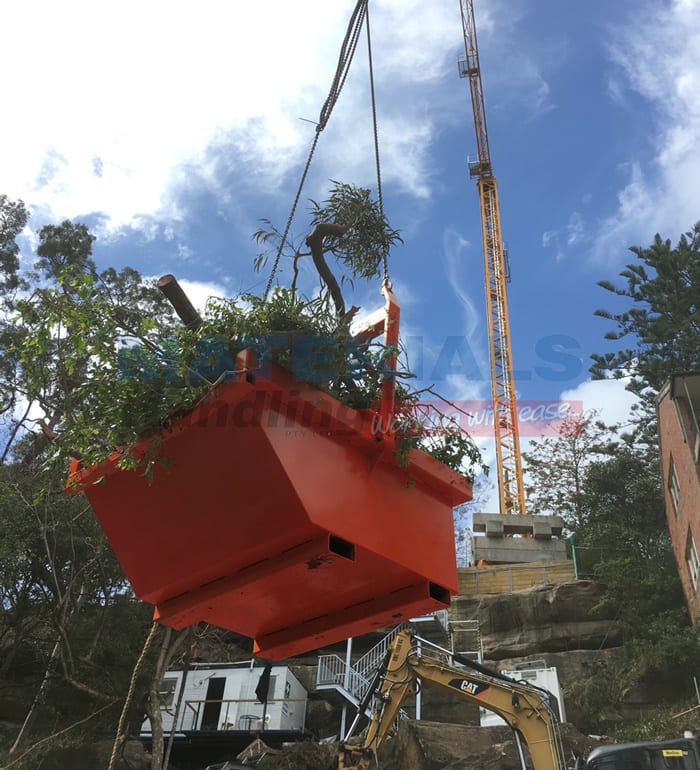

The MBWB range of Bulk Waste Crane Bins is designed to transport, remove and dispose of waste from building and mining sites. They feature the ability to carry large capacities up to 14 tonnes (Working Load Limit) and are extremely heavy-duty.

Crane Bin Tippers are specifically built to handle bulk waste, like sand, gravel, excavation waste and scrap metal.

Known as a heavy load crane bin, these large containers are used with overhead cranes. When tipping to empty contents, the pivoting yoke locks flatly into place at the rear of the bin. When lifted, the bin hangs vertically and can empty its contents. To reset, lower the bin onto the ground and release the catch.

Our Bulk Waste Crane Bins are available in three different sizes with various maximum load capacities.

Product Variation

Clear

Additional Information

Heavy-duty construction
Suits bulk waste transportation and removal, such as sand, gravel, excavation waste and scrap metal
For use with an overhead crane
Fitted with fork pockets for onsite transportation via forklift
Tip action is operated by lowering and automatically locking the pivoting yoke at the rear of bin

Bulk Waste Crane Bins are a great overhead lifting solution

The type MBWB Bulk Waste Bins use overhead cranes to transport and dump waste. It suits applications across industries that require large bulk capacities. The Crane Bins are extremely robust and durable. They’re also fitted with fork pockets for on-site transportation. Each bin is finished with enamel paint and is available in different sizes to suit either small- or large-scale operations.

MBWB10:

Volume Capacity – 0.8 m³
Working Load Limit (WLL) – 1.5 tonnes
Unit Weight – 245 kg
Pocket Size – 185 x 85 mm
Pocket Centres – 700 mm
Lifting Chains not supplied

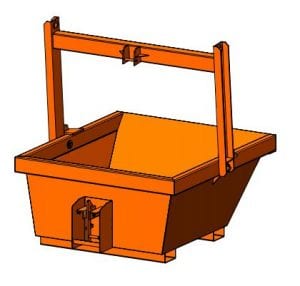

MBWB20:

Volume Capacity – 1.5 m³
Working Load Limit (WLL) – 3 tonnes
Unit Weight – 510 kg
Pocket Size – 185 x 85 mm
Pocket Centres – 900 mm
Lifting Chains not supplied

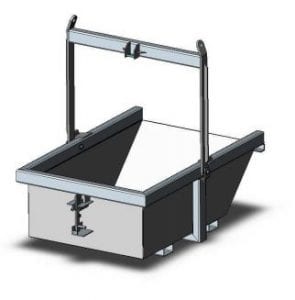

MBWB30:

Volume Capacity – 3.0 m³
Working Load Limit (WLL) – 5 tonnes
Unit Weight – 825 kg
Pocket Size – 185 x 85 mm
Pocket Centres – 950 mm
Lifting Chains not supplied

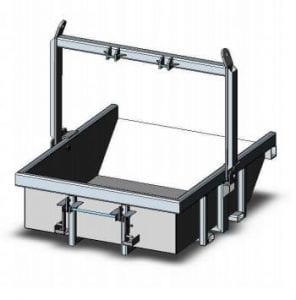

MBWB50:

Volume Capacity – 5.0 m³
Working Load Limit (WLL) – 14 tonnes
Unit Weight – 2560 kg
Pocket Size – 185 x 85 mm
Pocket Centres – 950 mm
Lifting Chains supplied

Require an alternative solution?

View our full range of Crane Bin Tippers.

Product Variations

Description	Product Code	Price (excl. GST)
Bulk Waste Bin 0.8 cubic metre capacity 1500kg WLL	MBWB10	$2,880.00	Add to Quote Request
Bulk Waste Bin 1.5 cubic metre capacity 3000kg WLL	MBWB20	$6,170.00	Add to Quote Request
Bulk Waste Bin 3 cubic metre capacity 5000 kg WLL	MBWB30	$8,790.00	Add to Quote Request
Bulk Waste Bin 5 cubic metre capacity 14000 kg WLL	MBWB50	$25,070.00	Add to Quote Request
